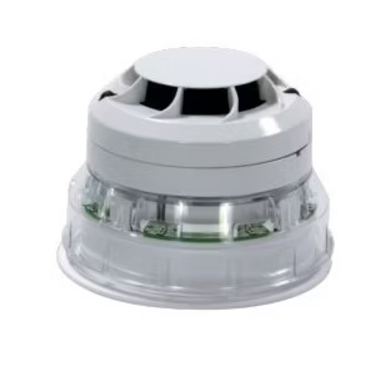

STD DB S/STROBE AS7240.23 C-CAT S/SENSOR (Standard)
Product code:
BRS-PC-I00
DRY FIRE
Features:
- Globally approved 32 tone set, selectable from device.
- Automatic synchronization of sounder and strobe
- Rotary dials & address tags for clear address indication
- Simple twist fit onto universal B501AP Base
Technical details
- Supply voltage: 15 to 29 VDC (Isolation)
- Operating humidity range: 93% ± 3%, non-condensing
- Type: Addressable Sounder Strobe Base
- Protocol: CLIP
- Operating temperature range: -10°C to 50°C
- Flash colour: Red
- Operating / Standby current: 150 uA maximum Standby
- Pack Qty: 1
- Unit Qty: 1
- Product Dimensions: 6.0 cm height x 12.5 cm diameter
- Colour: White
- Warranty: 12 months
- Service Instructions: Refer to AS1851-2012
- Maintenance Instructions: Refer to AS1851-2012
- Other: Ingress protection: IP21C (with low profile B501AP base and IP Seal) Sound Output, typical: 96dB (A) ±3dB @ 1metre (Tone 3, high volume @ 24V) Strobe Flash Rate: 0.5 Hz / 1 Hz (Legacy mode)
